External Walk On Rooflight/Skylight – Made to Order

• External Walk-On, Flat-Roof Rooflight
• 20 Standard and Bespoke Sizes Available (Call for Quote if require size isn’t listed above)
• Size represents the Internal Viewing Area
• We carry a small amount of stock. MOST SIZES ARE MADE TO ORDER
• Prices should be read as a guide price only. Prices were correct at time of publication and are subject to change
• DELIVERY: 6-8 WEEKS

ROOFLIGHT FEATURES:

• 3 x 10mm Toughened Safety Glass, with 6mm Toughened Inner Glass Panel.
• A Black Boarder is applied to the underside of the outer glass to conceal roof joists
• A low U-Value of 1.2 W/m²K (Energy Rating)
• Excellent Thermal and Noise Reduction Qualities
• Rebated, Easy-Fit Wooden Kerb Mount Supplied
• Weight: 100kg m²
• Meets BS EN 1991-1-1:2002 for Domestic Applications:
  Uniformly distributed load (UDL) from 1.5kN/m2
  Concentrated load from 2.0kN
• BS Approved: BS 12150 – Toughened Safety Glass
• Kite Marked: BS 14449 – Laminated Safety Glass
• 20 Year Guarantee as Standard – (against leaks & condensation)

Double Glazed Dimensions:

• Outer Glass: 10mm Toughened Glass / 1.5mm PVB / 10mm Toughened Glass / 1.5mm PVB / 10mm Toughened Glass
• Total thickness – 33mm
• 12mm Warm Edge Spacer Bar (Filled with Argon Gas)
• Inner Glass: 6mm Clear Toughened, Low-E Soft Coated Glass
• Total Unit Thickness: 51mm

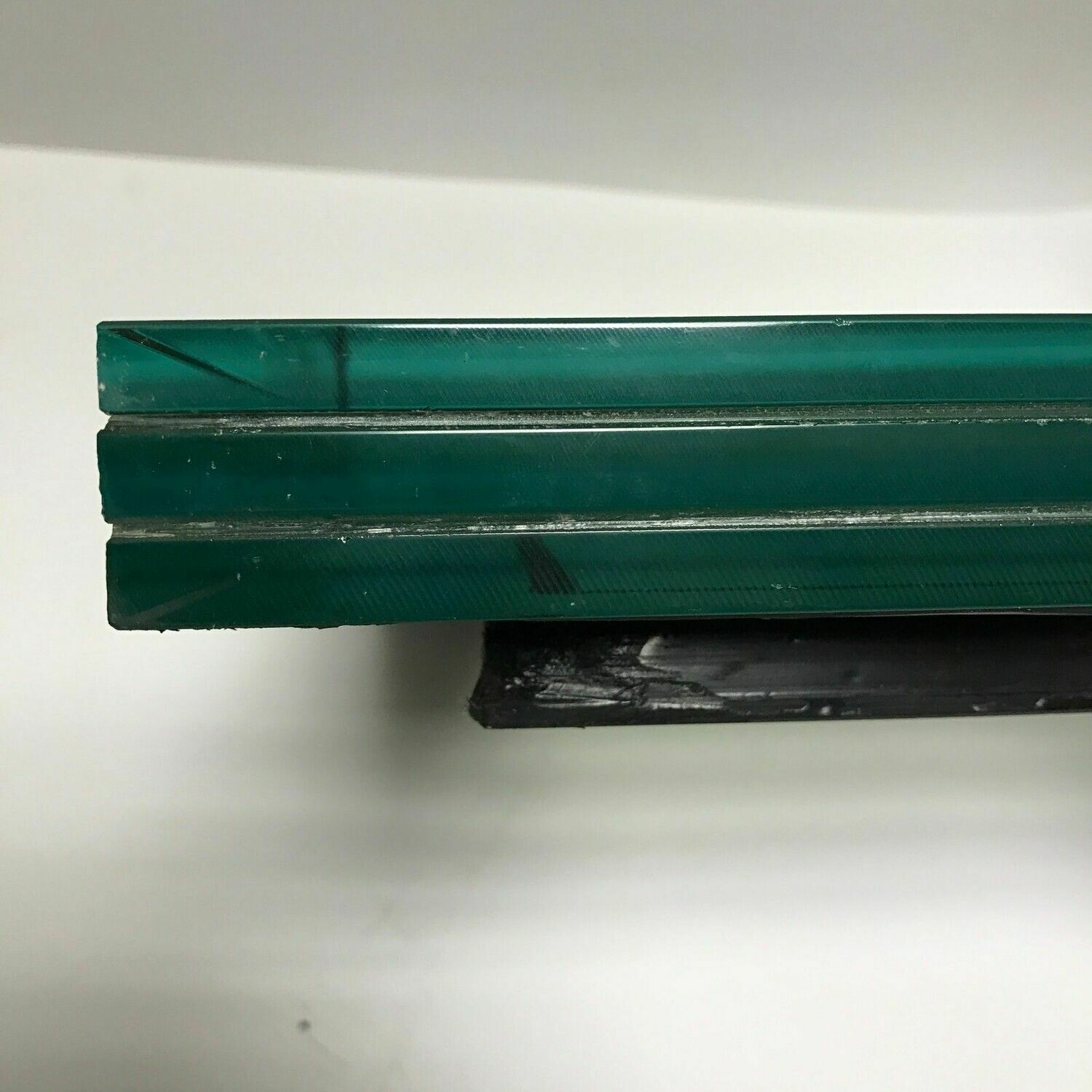

Laminated glass is bonded by a Polyvinyl Butyral (or PVB) interlayer, ensuring it provides longer lasting security.

In the event of the glass breaking, it is held in place by the PVB interlayer. The interlayer keeps the layers of glass bonded together, even when broken, and its high strength prevents the glass from breaking up into larger sharper pieces.
