Description
Triple Glazed, Toughened, Glass, Self-Cleaning Rooflight. Laminated Glass available upon request. Please enquire.
20 Standard Sizes in Stock – Bespoke Sizes Available Upon Request. (Allow 14 days for bespoke units).
Use on a flat-roof, or a pitched roof if required, (up to a 30° pitch).
**New stock arrives weekly. If the size you require is currently showing as, “Out of stock”, please call 07474 384909 to find out when new stock is due**
Contemporary Design with Leading Thermal Properties
The Panotrade rooflight is the only true seamless glass rooflight. Designed in such a way, that unlike most roof-lights, which have an aluminium kerb, it has no joints anywhere, just a seamless piece of glass.
Once fitted, the timber kerb will be fully encapsulated on all sides, so just like the roof joists, it can not be seen, whether you are using a felt, fibre-glass or EPDM roof covering.
Our fixed rooflight units have an excellent U-Value rating of just 0.83 W/m²K, (a measure of heat transmission through a window). Building regulations stipulate the U-Value must be under 1.5 W/m²K, with lower numbers indicating better insulating properties. At 0.83 W/m²K, Panotrade’s rooflights are one of the most efficient on the market!
We can 100% Guarantee the skylight will not leak….EVER!!
Warranty:
All our Rooflights come with a 20 year warranty.

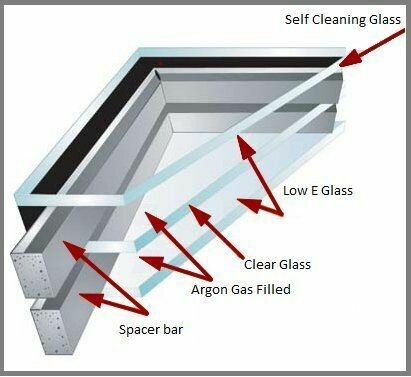

Triple Glazed Design:
- OUTER PANE: 6mm Toughened, Soft Coat SELF-CLEANING Glass
- 16mm Black Warm Edge Spacer Bar (reduces thermal conductivity, lowers heat loss)
- Argon Gas filled between glass panels
- MIDDLE PANE: 4mm Toughened, Soft Coat Glass as standard
- 16mm Black Warm Edge Spacer Bar (outstanding external sound reduction)
- Argon Gas filled between glass panels
- INNER PANE: 4mm Toughened, Soft Coat Glass
- Gives a U Value of 0.83 W/m²K
- Total thickness = 46mm
- British Standard Approved: BSEN12150C1 & BS 14449
- CE Kite Marked
Eco-Friendly and Energy Efficient
Ultra Low U-Value of just 0.83 W/m²K, (building regulations state you need under 1.5). Panotrade rooflights are 40% more efficient than required industry regulations.
Product Specifications
Product Specifications
- Triple Glazed, Toughened, Safety Glass
- Silicone Sealed – Prevents condensation and internal misting between glass panes
- Warm Edge Spacer Bar. Improves thermal performance and lowers heat loss
- Argon Gas fills the cavity between each pane. This improves the U-Value, making the skylight more energy efficient
- Coated with Activ™ Self-Cleaning Agent
- Low-E Soft Coated – Maximises Thermal Insulation
- Ultra Low U-Value of (0.83 W/m²K)
- Excellent Thermal and Noise Reduction Qualities

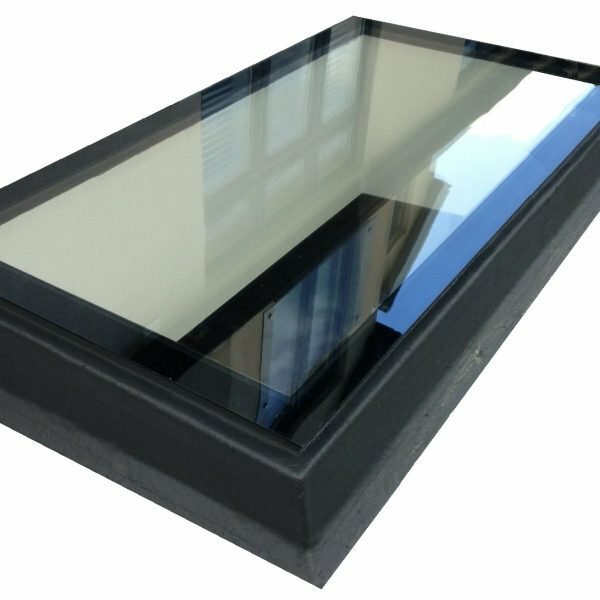

- Contemporary Black Border-Edged Glass
- Timber kerb supplied (Free) – Scroll through pictures above
- IMPORTANT: Low Modulus Silicone Sealant MUST be used when bonding the glass unit into the timber kerb. (Silicone available. Click on “Shop” link above).
- BS Approved – BS 12150 – Toughened Safety Glass
- 2-5 Days Delivery – Next Day Possible (Please enquire).
- Please enter your post code at check-out to calculate the delivery fee.
- We Guarantee our units will never leak, EVER!!
- Fully illustrated Fitting Guide supplied
- Technical Phone support
Fitting Instructions
Fitting Instructions
Purchase your rooflight size, determined by the internal structural viewing area / opening size of the aperture in your roof. For example, if you have cut out a 1000mm x 1000mm square hole in your roof, you need to purchase our 1000mm x 1000mm rooflight.

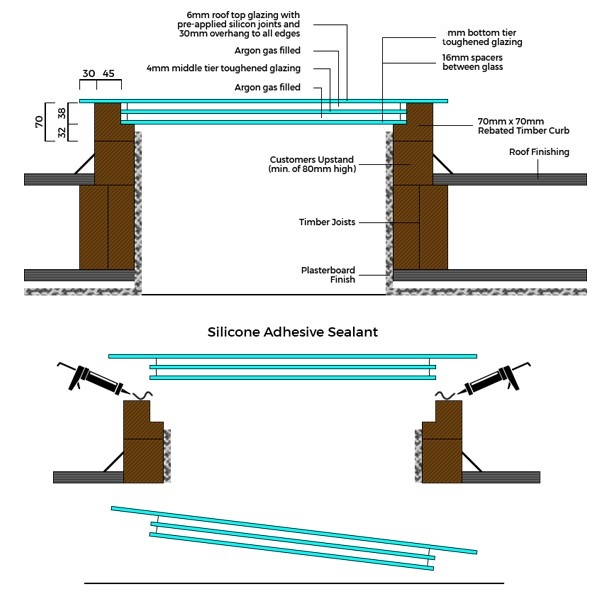

You are required to build an upstand, which should measure 70mm(W) x at least 80mm(H). Building regulations require rooflights to be at least 150mm(H) from the finished roof. Refer to photos above.
To allow water to run off the glass, we suggest you create a gradient of 50mm for every linear metre, run in line with the fall of your roof. This also enables the self cleaning glass to work efficiently and to ensure there will be no ‘pooling’ of water forming in the middle of the rooflight. A simple water test is suggested before you bond the unit on to kerb.

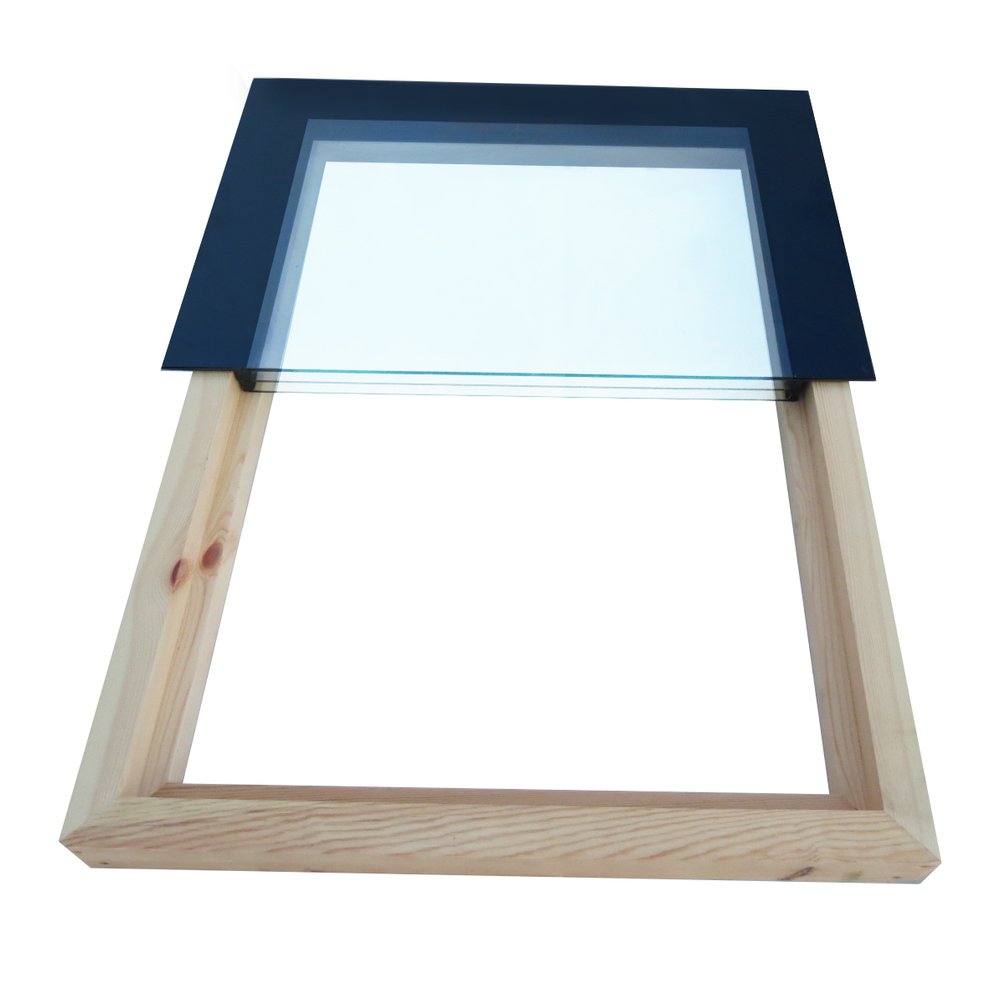

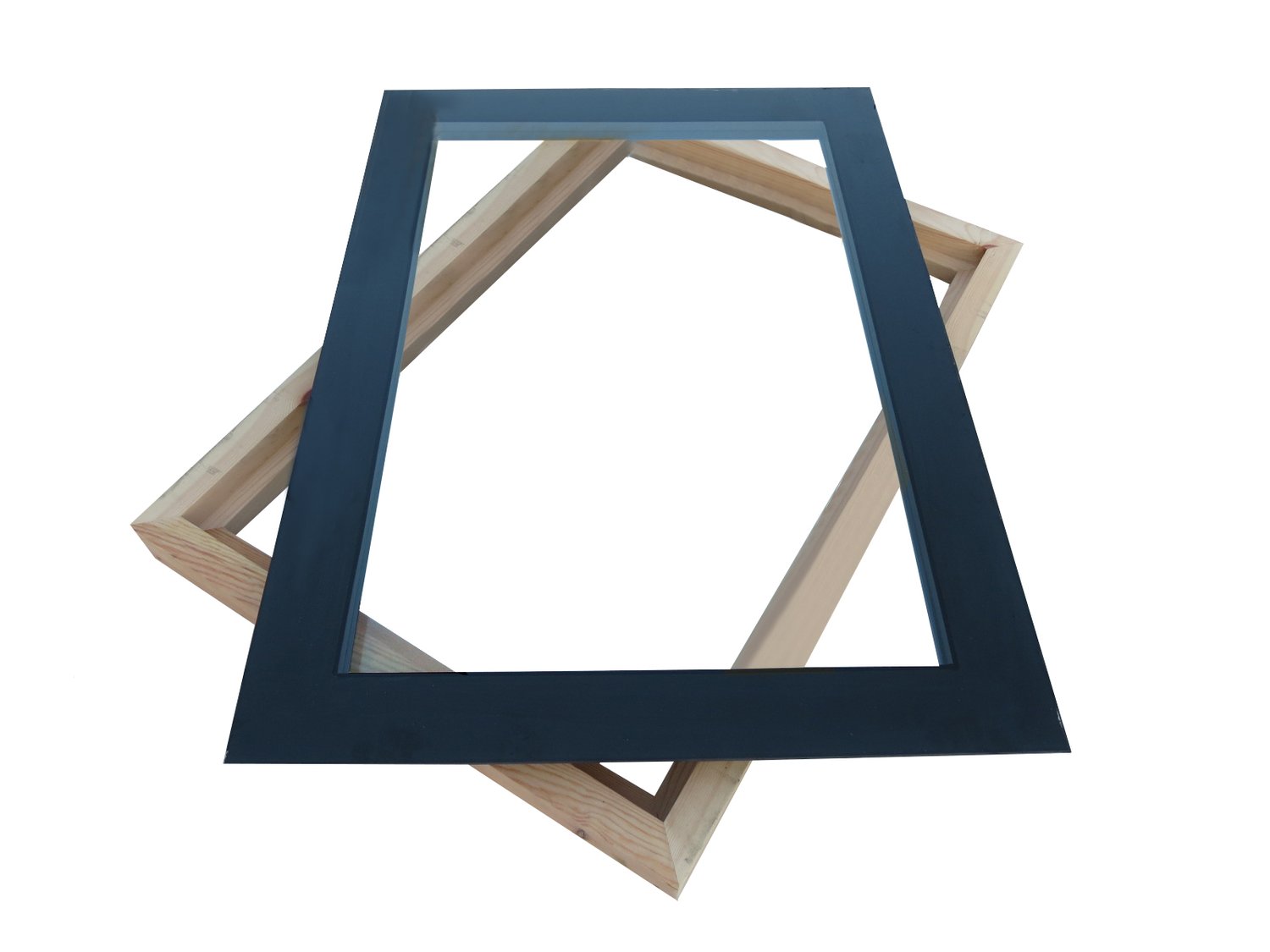

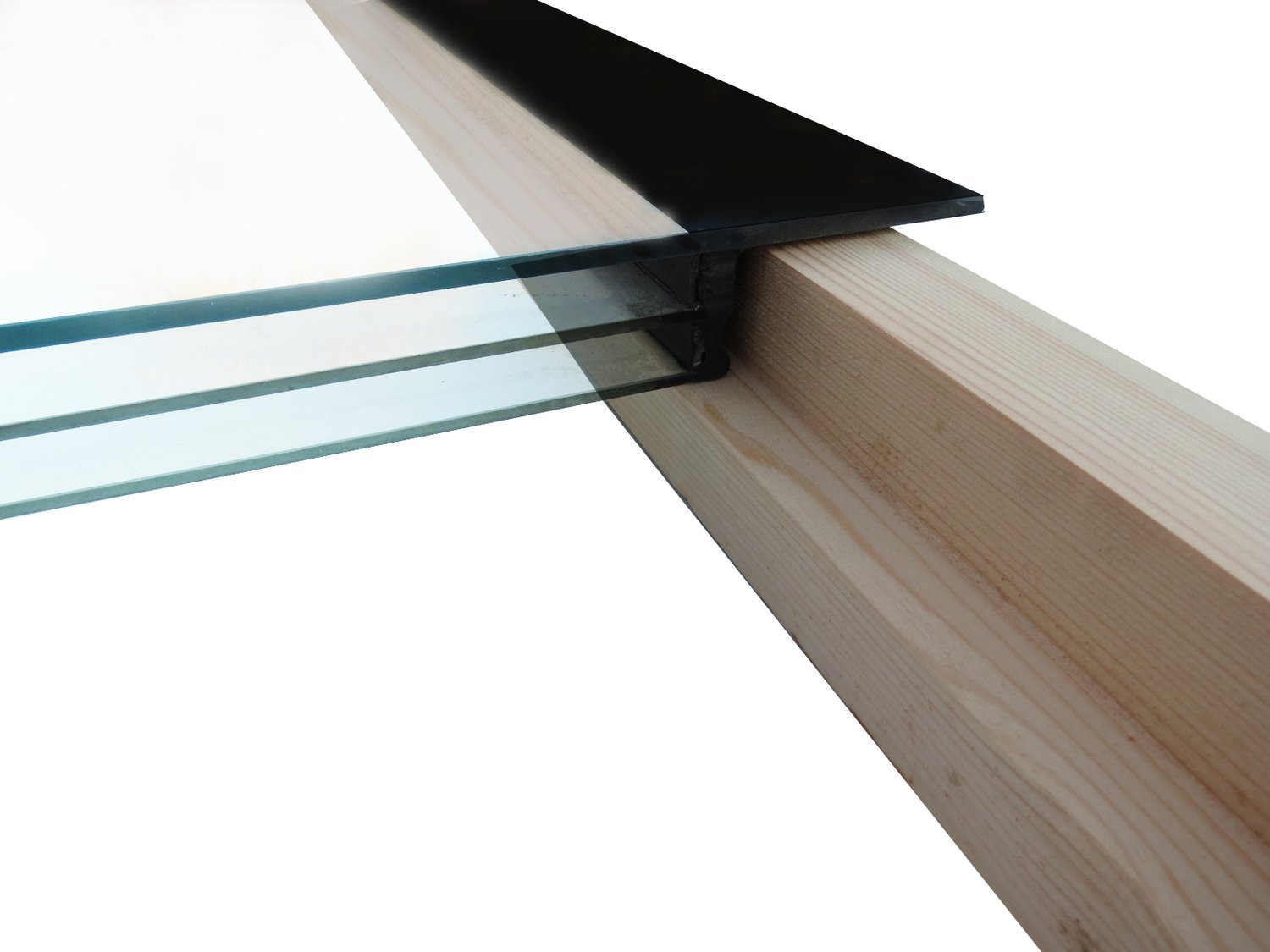

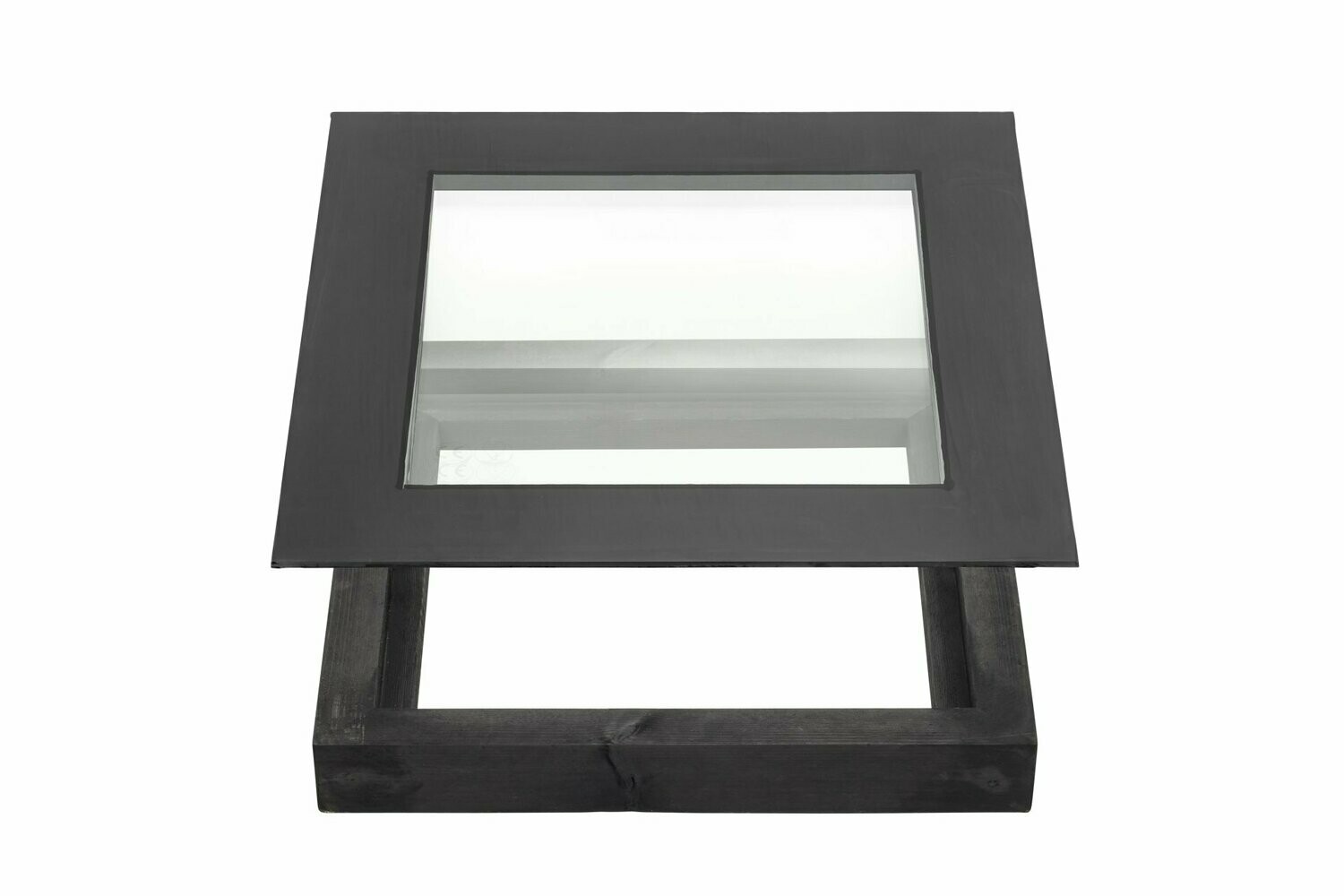

All our rooflights come with a FREE, treated, easy-fit, rebated timber kerb, made from 70mm x 70mm square timber, with a 25mm(W) x 38mm(H) rebate. This is fixed on top of your builder’s up-stand.

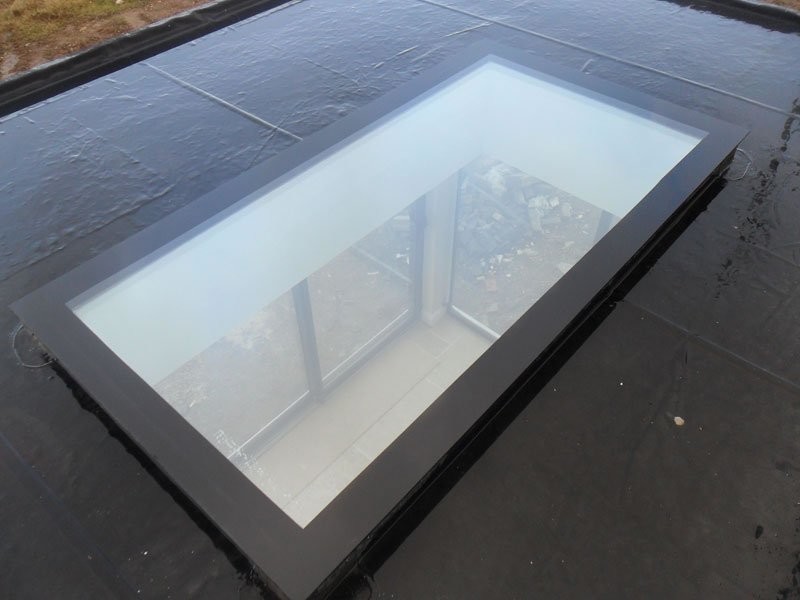

When covering the roof with fibre glass, (GRP), EPDM rubber sheeting, or a felt based finishing, run along the roof, covering horizontally and then move up vertically along the base of the rooflight and level to the top of the up-stand and our timber kerb. It is important not to overlap the top edge of the kerb, keep this wood bare for the adhesive silicone to be applied later. Once the rooflight is placed into position, the wooden up-stand will be totally encapsulated, rendering the framework invisible.
Internally, fix a plasterboard stop bead, approximately 5mm below the bottom pane of glass. Next, run your plasterboard reveal all around, again rendering all framework invisible.
The stepped rooflight is then bonded into the kerb with a good low modulus glazing silicone. We suggest using at least one tube for every linear metre, applying copious amounts on the along the top edge of the kerb. Important: Using anything other than low modulus silicone will void your skylight warranty. Please refer to our shop for further details, or contact us for more details on the correct silicone to use.
Remove the rooflight from its crate and lower into the aperture, applying gentle pressure so the silicone is squeezed out. It is vitally important there are no ‘pin holes’, where water may ingress.

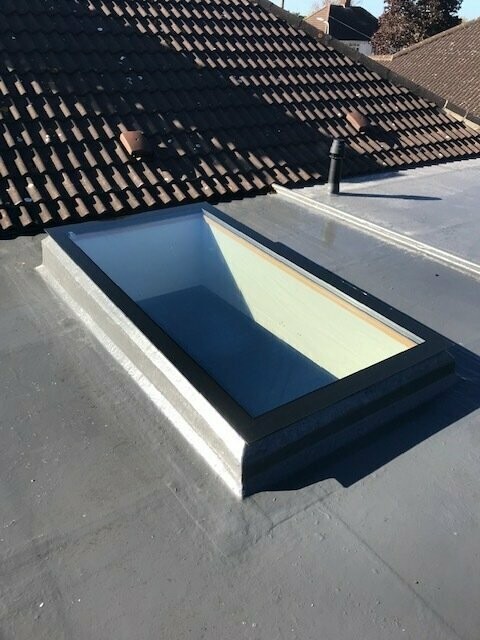

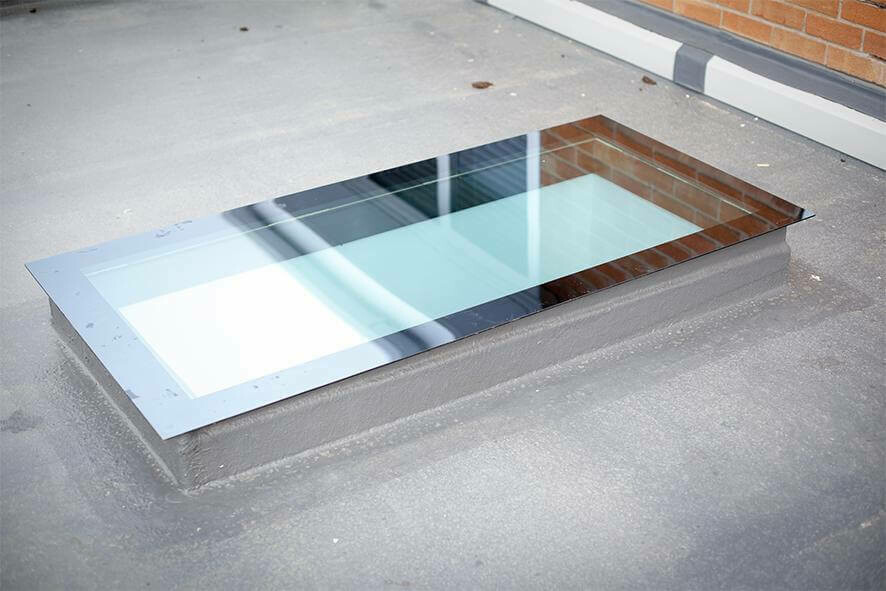

When installed, the external visible glass, (with the black edge border), will overhang the kerb, allowing rain water to simply run off.
